Creating a Recording

Step by step guide for creating a new recording.

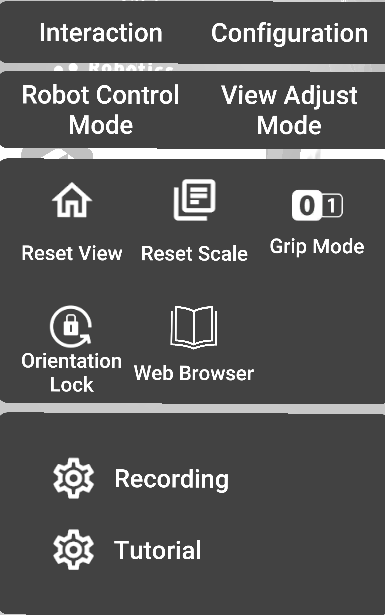

1) Getting to the Active Recording Panel

Pressing the recording button on the bottom of the control panel will activate the Active Recordings Panel.

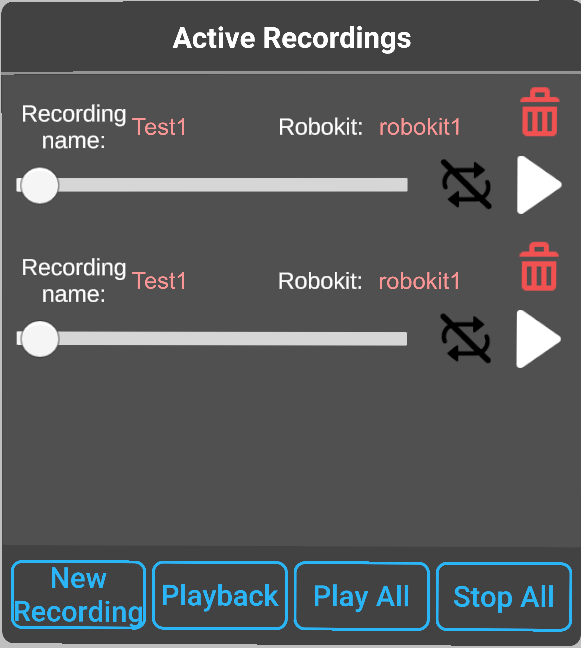

2) Press the New Recording button

Press the new recording button at the bottom left of the active recordings panel. Pressing the button will open the Select Robots to Record panel.

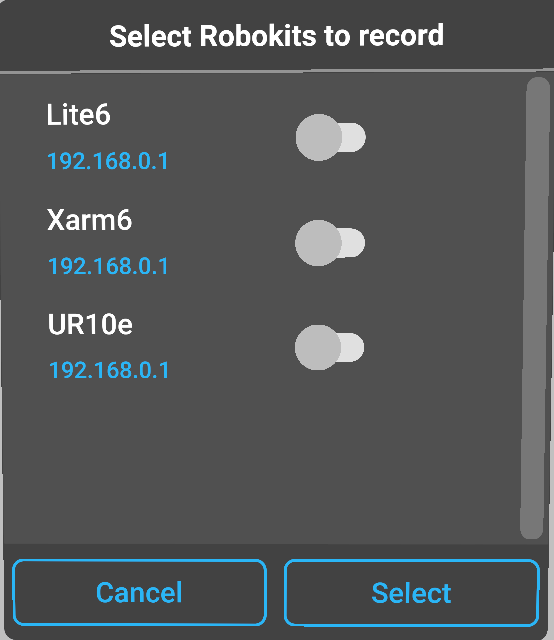

3) Select the Robots You Want to Record

From the Select Robots to Record panel, toggle on the Robot(s) you want to record and press Select button, this will forward you to the Recording Panel.

You are now ready to record your selected Robots.

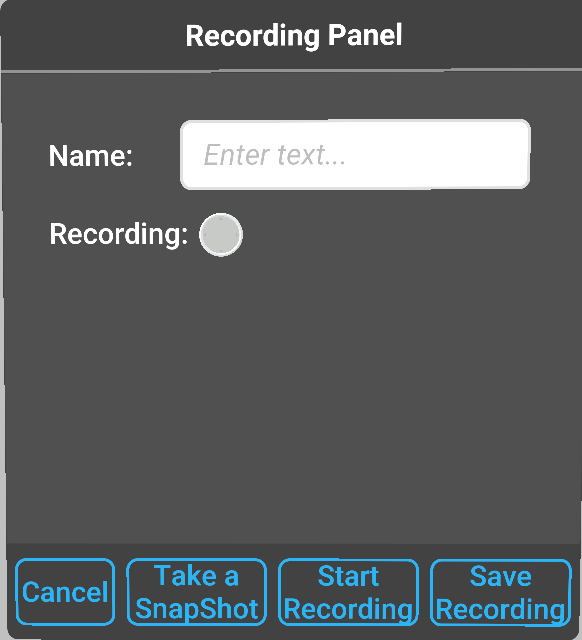

Recording

Recording Panel have two different methods to record a movement.

1)Start Recording.

Clicking the Start Recording button will start recording, and the Recording indicator will turn to red, and the robot's movements will be recorded until the Stop Recording button is clicked.

2)Snapshots

Move the robot to a different location and click the Take a Snapshot button. This will record the robot's new position as a new target and include it in the current recording.

Both Start recording and Snapshots can be used in the same recording.

Note: Using the same name as an existing recording will overwrite it.

When satisfied with the recording, click the Save Recording button to finalise and create a recording file.
